Laminar Flow AISite Scan
A scanning technician at your site, without buying the hardware.
We bring handheld or terrestrial LiDAR hardware to you, then hand back a registered point cloud — or run it straight through FastCAD for you.
Hardware catalog
The right instrument for the space
We match hardware to the site rather than running one rig everywhere — it's the difference between a scan that needs rework and one that doesn't. Specs below are manufacturer-published.

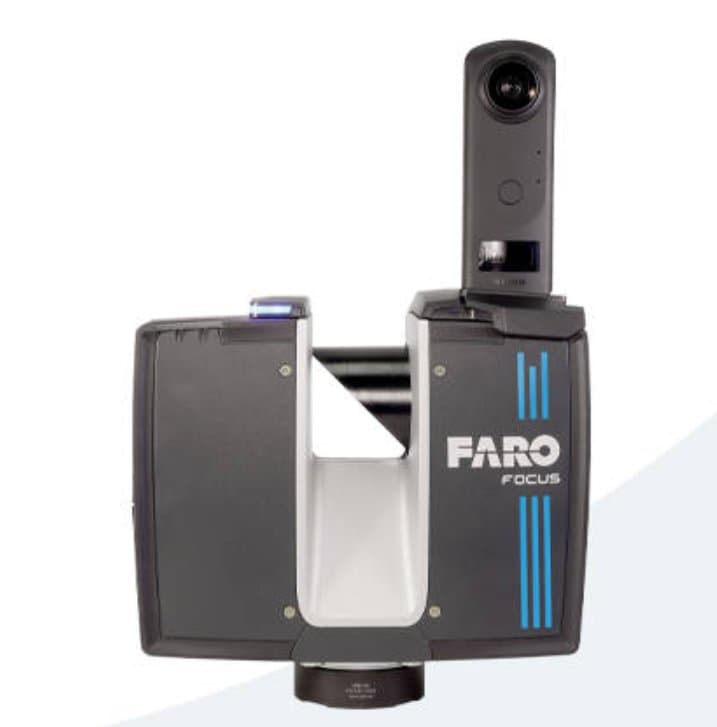

FARO Focus Core
| Range | Up to 70 m |
| Ranging accuracy | ±2 mm |
| Scan time | From 1 min/scan |
| Colour capture | 165 MP |
| Weight | 4.4 kg |
| IP rating | IP54 |

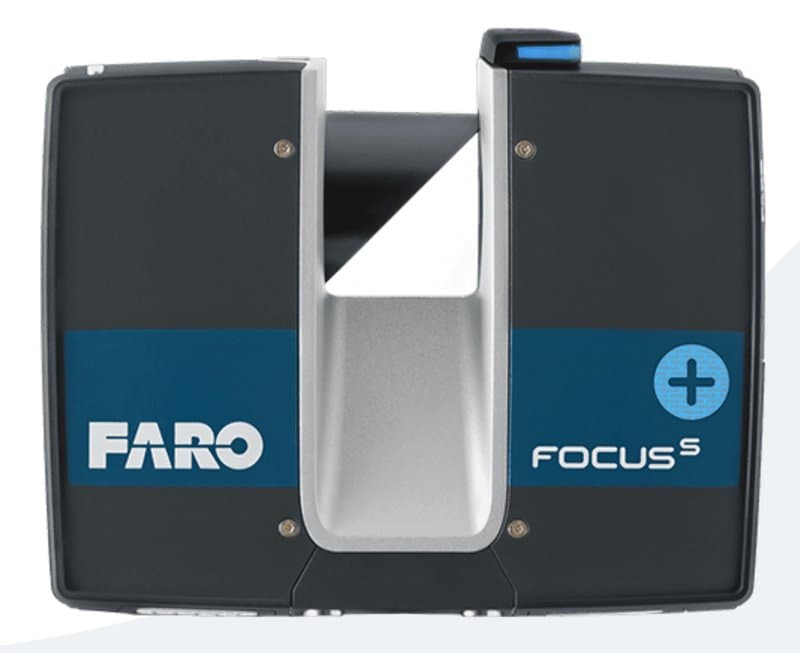

FARO S70
| Range | 0.6–70 m |
| Ranging accuracy | ±1 mm |
| Measurement speed | 976,000 pts/s |
| Battery runtime | 4.5 hrs |
| Weight | 4.2 kg |
| IP rating | IP54 |

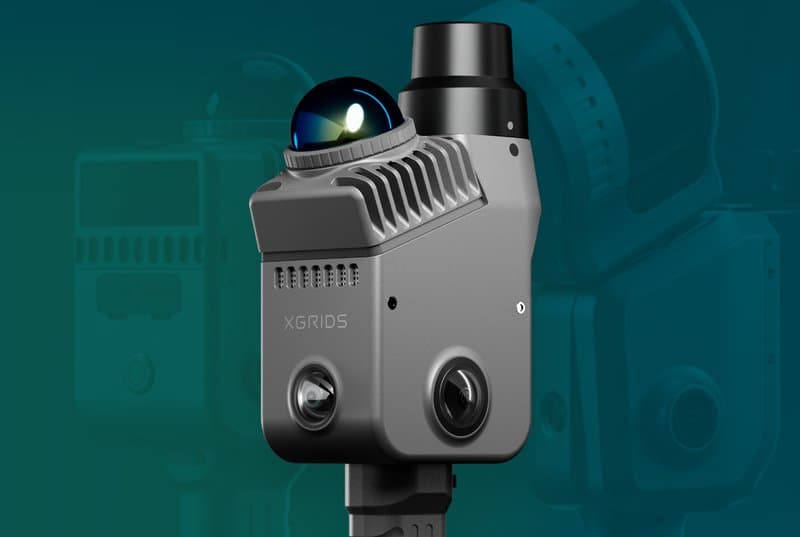

Lixel K2
| Range | Up to 100 m |
| Accuracy | ≤1 cm rel. / ≤5 cm abs. |
| Scan speed | 200,000 pts/s |
| Battery runtime | 180 min |
| Weight | 1.2 kg |
| IP rating | IP54, built-in RTK |
Process
From request to point cloud
Tell us about the site
Submit the request form below with building type, floor count and preferred date. We confirm scope and quote within one business day.
Technician visits site
A trained scanning technician arrives with the hardware matched to your space and captures every floor.
Registration & QA
Scans are registered into one coordinate system and checked for coverage gaps before handoff.
Point cloud delivered
You receive the registered point cloud directly, or we carry it straight into FastCAD for vectorisation.
Request a scan
Get a quote in one business day
Tell us about the site and we'll come back with a scope and price before we book a visit.
